JKW-55 Type Automatic Brick Raw Material Mixer And Brick Extruder Machine In Brick Plant

1, Equipment Structure Characteristics

Double shaft mixer mainly by the shell, screw shaft assembly, drive, piping, cover, chain cover and other components (see random external map), the specific structural performance characteristics are as follows:

1 Shell is mainly composed of plate and steel, welded in the factory forming, and assembled with other components, is the biaxial mixer support. Shell sealed tightly, there will be no fly ash, Yang, the phenomenon of leakage.

2. Screw shaft assembly is the main component of the biaxial mixer, its components are mainly about the screw shaft, bearing housing, bearing housing, bearing cover, gear, sprocket, oil cup, blades and other components.

Screw to the left and right axis to produce high precision requirements, process performance, and the bearing seat, bearing sleeve, bearing cap with strict requirements. The gear module is 8, the number of teeth is 60, the tooth profile angle is 20 °, the sprocket pitch is 50.8, the number of teeth is 25 and the profile is GB1224-85. Gears, sprockets have protective cover protection, safe and effective operation. Oil cup press-fit pressure cup, filling lubricant convenient and effective. Biaxial mixer blade material selection of wear-resistant and difficult to stick gray composite ceramic. Blade structure design is reasonable and easy, easy to change after wearing, long service life.

3. Water conditioning pipe mainly by the takeover, fittings and nozzles. Nozzle spray nozzle stainless steel cone, arranged in the mixer above the internal shell, along the axial direction of the spiral axis arranged to form a curtain to facilitate humidification mixing materials. Nozzle structure is simple, easy to replace, stainless steel, corrosion-resistant durable. Moisture content can be adjusted by operating the manual control valve on the supply line.

4. Cover mainly include left cover, middle cover, right cover, hole cover and access hole cover. Biaxial mixer on both sides of the set six manholes, to facilitate the operator's normal maintenance and repair. Biaxial mixer for pneumatic conveying end,

2, Technical parameters

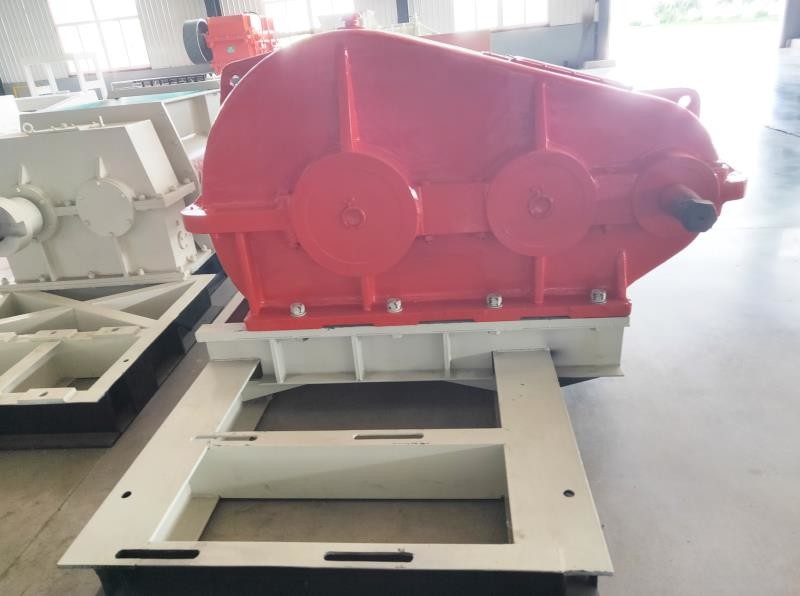

3. Machine pics

Factory intrduction:

Hebei Bohai Machinery Machinery Co.ltd is a brick machine manufacturer with 27years experiences .Our brick machinery focuses on low carbon ,energy -saving ,promote energy conservation and emission reduction .

“CANGBO” brick machine mainly include :vacuum extruder, gantry type high accuracy setting machine, high accuracy robot, auto-cutting, setting and flapping system .

Our machinery has been exported more than 10 different countries such as Mongolia, Russia, Bangladesh, Uzbekistan, Vietnam and Zimbabwe etc.

Our slogan is "Do good , Do great , Do better , Do best",

Only then ,could we provide the best machine with the best service to the enterprise all over the world

Main products:

CANGBO JKY60-4.0 to JKY150S/150/120/ 90/75 -4.0 and so on  brick making machine and brick cutter ,brick stacker and even kiln equipment .
