16000t/H JKY55 550mm Automatic Brick Making Machine

    Buy cheap 16000t/H JKY55 550mm Automatic Brick Making Machine from wholesalers

    Buy cheap 16000t/H JKY55 550mm Automatic Brick Making Machine from wholesalers
    • Buy cheap 16000t/H JKY55 550mm Automatic Brick Making Machine from wholesalers
    • Buy cheap 16000t/H JKY55 550mm Automatic Brick Making Machine from wholesalers
    • Buy cheap 16000t/H JKY55 550mm Automatic Brick Making Machine from wholesalers

    16000t/H JKY55 550mm Automatic Brick Making Machine

    Ask Lasest Price
    Brand Name : CB
    Model Number : JKY-55
    Certification : ISO-9001 CE
    Price : Negotiation
    Payment Terms : L/C, D/A, T/T
    Supply Ability : 5000SETS
    Delivery Time : 60 days
    • Product Details
    • Company Profile

    16000t/H JKY55 550mm Automatic Brick Making Machine


    JKY55 Automatic Burning Brick Large Quantity Brick Kiln Design Auto Bricks Machine


    1.product description


    1. Two-stage vacuum brick making machine is a new type of brick making equipment designed and manufactured by our company using advanced technology at home and abroad.


    2. Integral steel structure, the main parts are cast from high wear-resistant alloy, and undergo high frequency heat treatment process.


    3. Reasonable structure, large load, energy saving, high efficiency, easy maintenance, more suitable for shale, coal stone, fly ash to make porous bricks and solid bricks.


    2. Product features:


    1. The automatic red clay brick machine is used to produce large holes, large cross-section solid bricks and hollow bricks with various hole sizes, and is suitable for a variety of materials.


    2. It has the characteristics of novel structure, advanced technology, high extrusion pressure, high output and high vacuum. Controlled by pneumatic clutch, it is sensitive, convenient and reliable.


    3. After being extruded from the lower auger into the fuel tank, the soil and other raw materials are cleaned by vacuum. When the machine model is different, various specifications of porous bricks can be produced.


    3 . Techical parameter


    DateUnits of measJKY55-4.0
    Production capactyiPieces/h16000-32000
    Reamer diametermm550
    PressureMpa4.0
    Moisture content%13~18
    Vacuum degreeMpa≤-0.092
    Powerkw185+75
    Sizemm6300×1600×2450
    Weightkg20000

    4.Product Advantage


    It has the characteristics of reasonable structure, heavy duty, energy saving, high efficiency and easy maintenance. It is more suitable for the production of honeycomb bricks and solid bricks of shale, coal stone and fly ash.

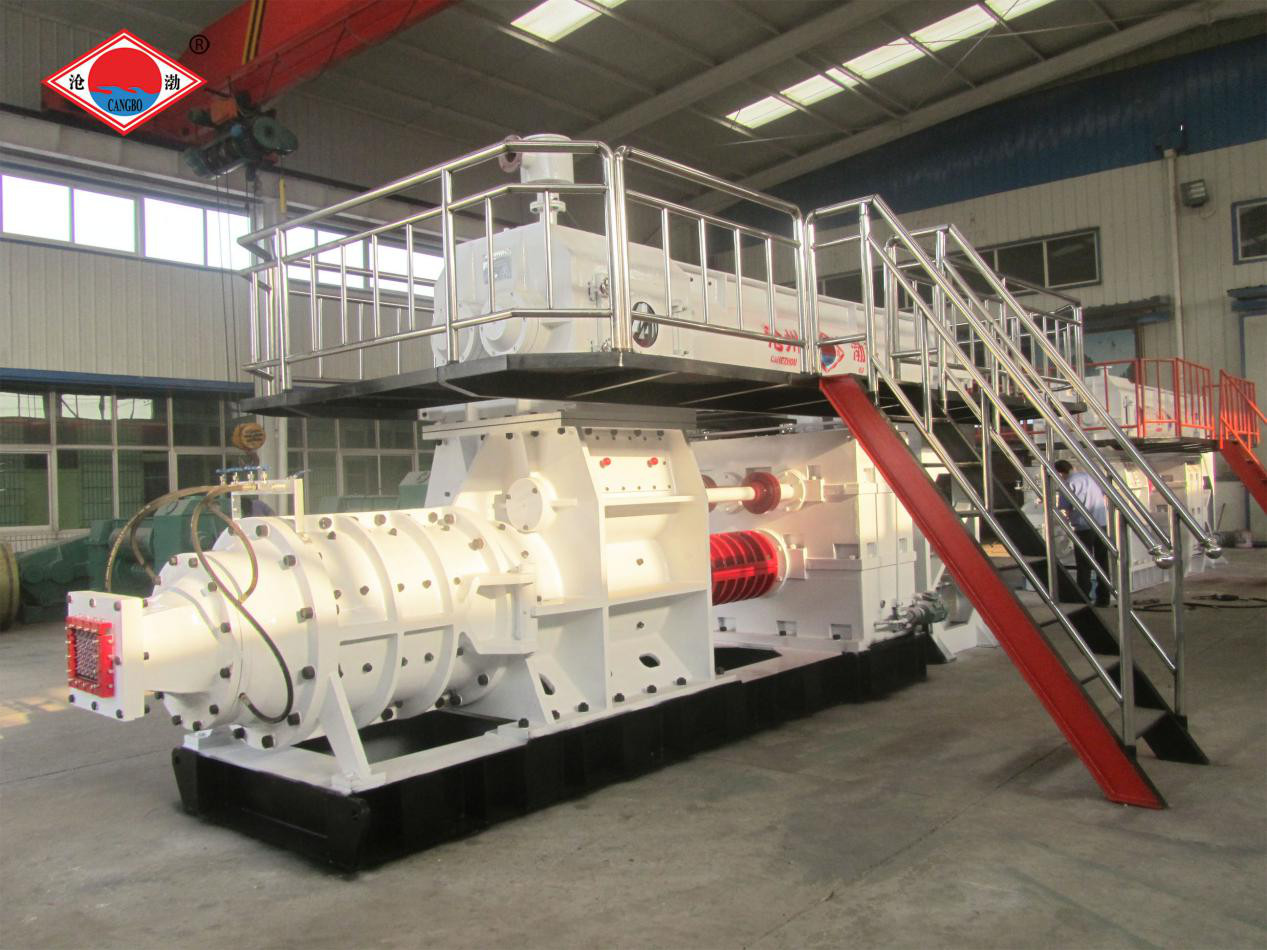

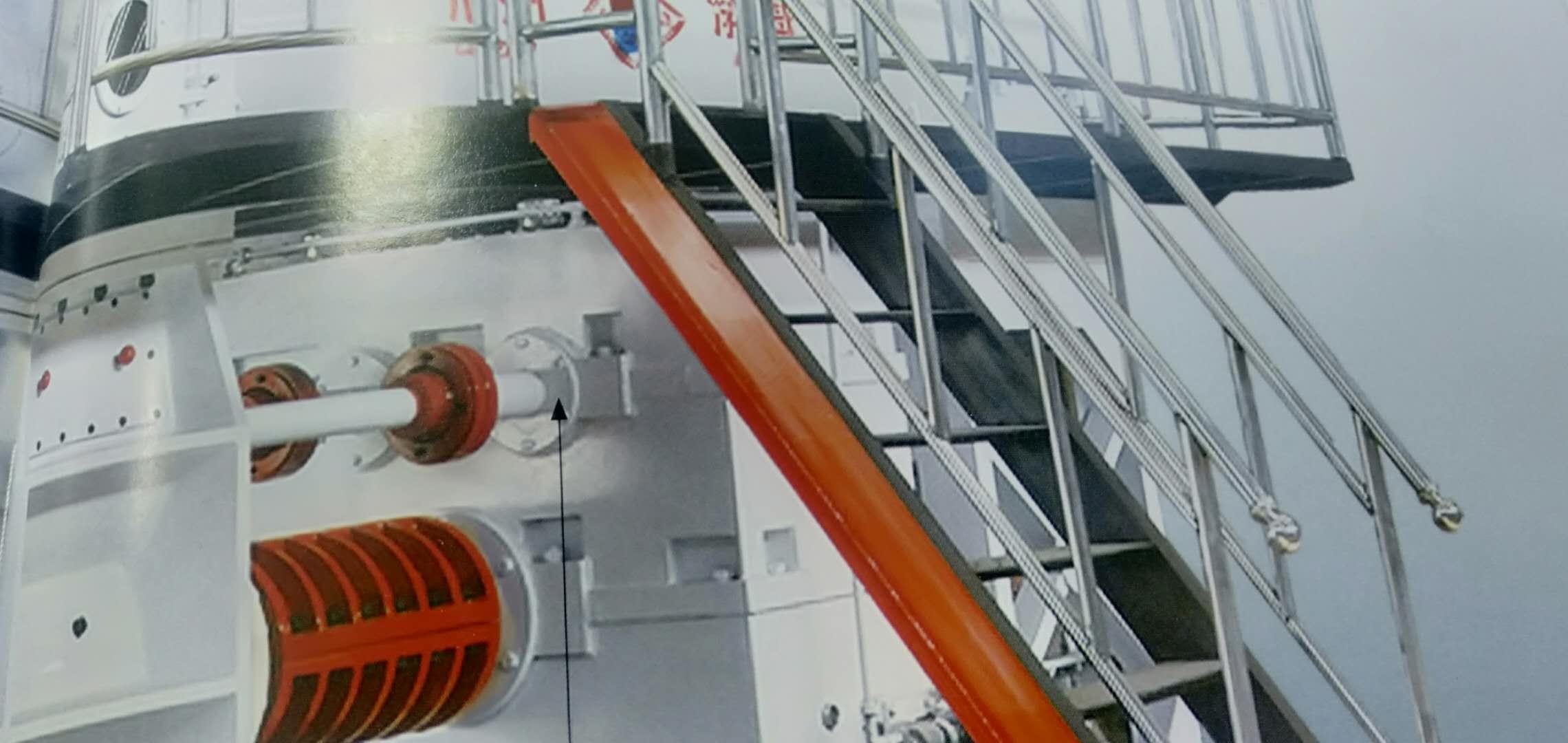

    5. . Machine pictures


    16000t/H JKY55 550mm Automatic Brick Making Machine16000t/H JKY55 550mm Automatic Brick Making Machine16000t/H JKY55 550mm Automatic Brick Making Machine
