JKY - 45 Type Small Clay Soil Raw Material Automatic Brick Making
Machine
1. Product features:
JKB45 host vacuum extruder are designed many times according to the
domestic demand . These extruders have the feathers of low power
consumption and excellence performance and are the top products
among the same types in the domestic.
Fully Automatic clay red Brick Machine
2 . Techical parameter
| Specification type | JKB45 -3.0 |
| Production capacity(/h) | 12000-14000 |
| Reamer diameter(mm) | 500 |
| Power(kw) | 160 |
| Size(mm) | 5400×1900×1700 |
| Weight(kg) | 10200 |
3. Energy-saving vacuum hard plastic brick machine is all-steel
structure, reasonable structure, heavy load, energy-saving, high
efficiency, easy maintenance. Cellular brick and solid brick are
made from clay with high content of fly ash, shale and coal gangue.
4. Product Description
Due to the different raw materials, The Brick Machine can be
divided into 2 different type:
Hard-extruder and Soft Extruder. Our extruder is special designed
for the soft clay, it will be more suitable
For the country like Bangladesh, India, etc. Clay brick making
machine is high-performance vacuum extrusion equipment for forming
of various type hollow bricks made from coal gangue, shale, coal
dust and other solid wastes. It is designed to be produced with
German KWS technology according to German standards and is
authorized to use German trademark of GFK. Its mixing reducer is
equipped with hardened gears which are all grinded, and. the
extrusion reducer makes use of planet gears with high drive
efficiency, therefore, it is the advanced vacuum extrusion
equipment in the world.
1. Auger
1) Welded by wear resistant electrode, this auger could be
reusable; Spraying wear-resistant metal materials (the hardness is
7 times of normal one), which ensure a long service life of auger.
2) High chromium casting material with High wear resistance
feature, It has a long service life for producing 24 million
bricks.
5 . Product Advantage
1. The machine structure design is very unique, operate
steadily,machine small occupation area.
2. High vacuum extrusion, green bricks has a small moisture content
,easy to dry .
3. Produce different size and different type bricks /blocks .
4. The bricks drying process can adopt small drying chamber, tunnel
dryer chamber.
5. The bricks fired can adopt local kiln,hoffman kiln, tunnel kiln
.
6. Low cost, big capacity ,high profit .
7. The machine of key spare parts to adopt special quenching, spray
processing, machine has a long using life .
8. The machine has simple structure, easy operation and
maintenance.
9. Long-term stability of parts supply and after-sales service.

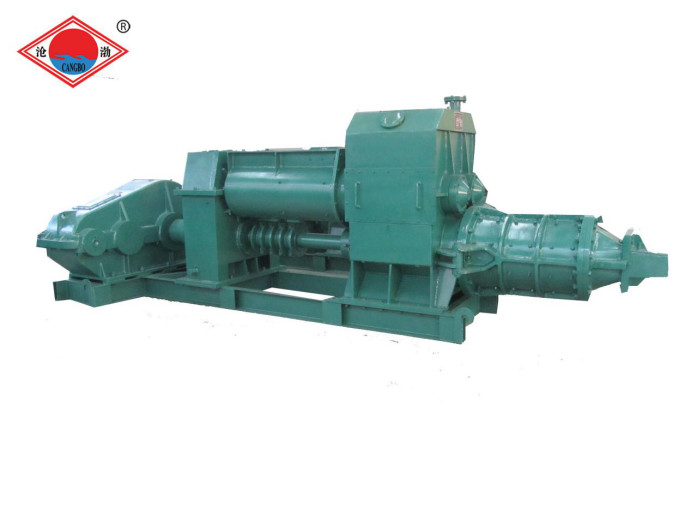

6 . Machine pictures
